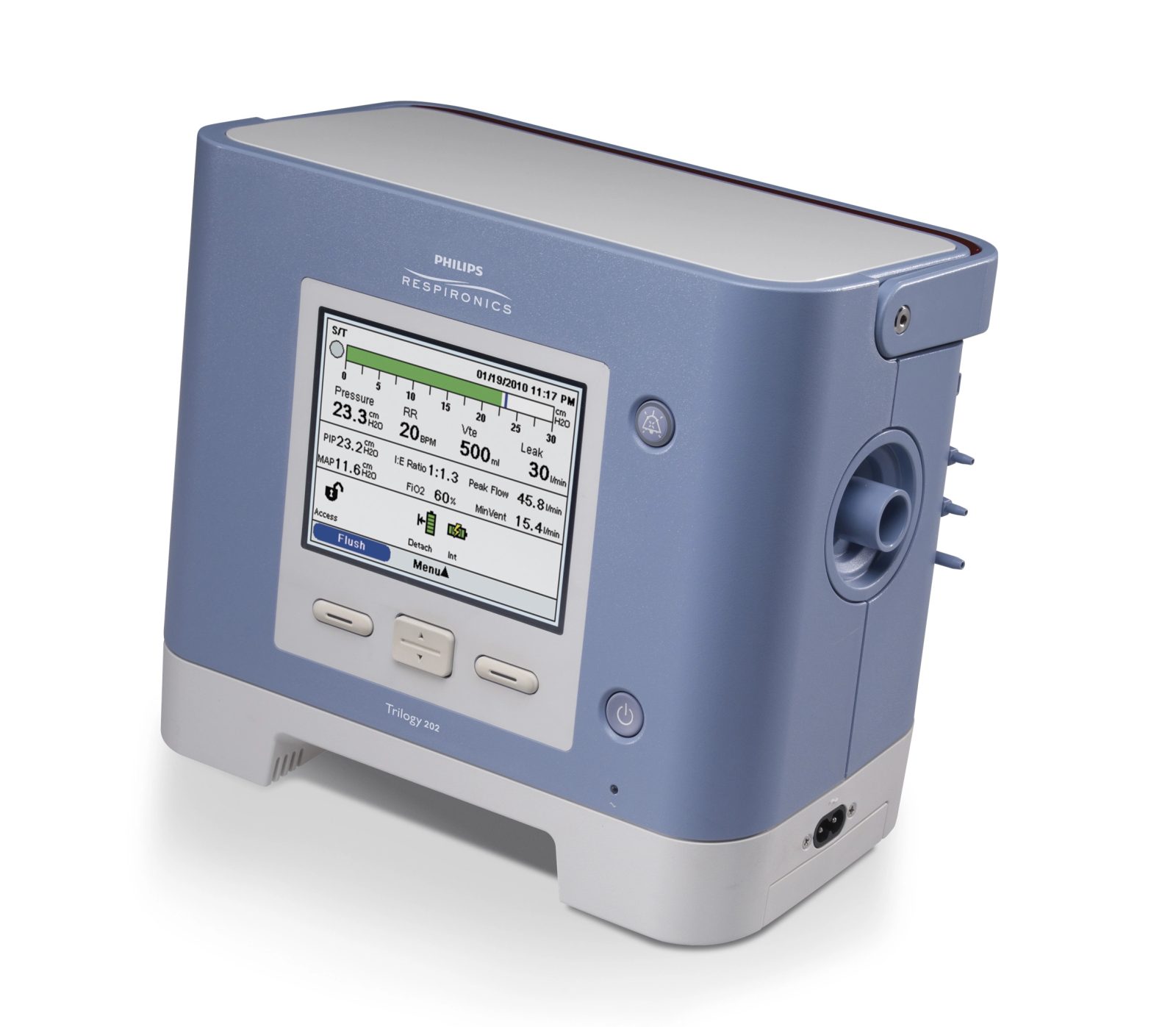

PHILIPS RESPIRONICS TRILOGY 202 VENTILATOR

Medical product type code 113890

1. The Trilogy 202 ventilator with volume and pressure control modes can be used for both invasive and non-invasive ventilation. Adaptive air supply and a variety of settings ensure uninterrupted medical care.
2. The Trilogy 202 has a unique leak compensation feature in volume and pressure controlled modes of operation. This allows the use of simple passive circuits, which saves a lot of time and costs.
3. Switching to active or passive circuit operation, when replacing it, is carried out with one light touch.
4. Trilogy 202 provides freedom of movement within the healthcare facility. The built-in battery lasts 3 hours, and the optional removable battery extends it by another 3 hours. In case of delays, the specialists will have enough time to transport the patient. The weight of the device is only 5.6 kg, and the built-in handle makes it easy to carry the device when transporting the patient.
5. Auto-Trak algorithm improves patient-ventilator synchronization by adapting to changing breathing patterns and dynamic leaks. Adaptive adjustment of the device to changes in the patient's breathing and automatic leakage compensation reduce the time spent by clinicians adjusting thresholds and refitting the mask.
6. All Trilogy devices for home and healthcare use have a single interface and are equipped with identical ventilation modes and breathing circuit settings. Patients treated at home receive respiratory support similar to ventilation in a hospital setting. Stored data can be downloaded and viewed for analysis and trending.
7. The Trilogy 202 ventilator allows all standard volume-controlled modes: AC, SIMV (with and without pressure support), and CV. The Trilogy 202 ventilator provides leak compensation in volume-controlled ventilation mode. This ensures reliable delivery of tidal volume even during non-invasive ventilation and in the presence of mask leaks.
8. The Trilogy 202 offers a set of standard volume-controlled ventilation modes: assisted ventilation (AC), synchronized intermittent mandatory ventilation (with and without inspiratory pressure support, SIMV and SIMV/PS), and controlled ventilation (VC). The Trilogy 202 features leak compensation in volume-controlled ventilation mode, which ensures a stable inspiratory flow even during non-invasive ventilation or circuit leaks.

• CPAP 4 — 20 cm. H20 (circuits with passive exit port) cm H₂O
• Adults Yes
• Children ≥ 5 kg or more
• IPAP 50 cm H₂O
• Operating temperature range 5 – 40 °C
• Relative humidity 15 – 95%
• EPAP/PEEP (a) 0 – 25 cm H20 (active valve circuits) cm H₂O
• Storage temperature -20 – 60 °C
• EPAP/PEEP (b) 4 – 25 cm H20 (circuits with passive exit port) cm H₂O
• Atmospheric pressure 60 — 110 kPa (450 — 825 mmHg)
• Pressure support 0 – 30 cm H₂O
• Tidal volume 50 – 2000 ml
• Respiration rate (a) 0 – 60 per minute (AC mode)
• Respiration rate (b) 1 — 60 per minute (all other modes)
• Inspiratory time 0.3 — 5.0 s. Synchronization functions
• Rise time 1 — 6 (relative scale)
• Initial pressure (a) 0 – 25 cm H20 (active circuits) cm H₂O
• Initial pressure (b) 4 – 25 cm H20 (passive circuits) cm H₂O
• Initial pressure (s) 4 – 19 cm H20 (CPAP mode) cm H₂O
• End time of pressure increase 5 – 45 min.
• C-Flex off 1 — 3 (relative scale)
• Flow Trigger Sensitivity 1 – 9 L/min
• Flow Cycle Sensitivity 10 — 90%
• Mouthpiece Ventilation Mode (MPV) Yes
• Pressure Control (PC) Yes
• Input voltage 100 — 240 V AC and 50/60 Hz and 2.1 A.
• Mouthpiece ventilation mode Yes
• Synchronized Intermittent Mandatory Ventilation (SIMV) Yes
• Pressure Control (PC) Yes
• Detachable battery voltage 14.4 VDC
• Internal battery life 3 hours under normal conditions hours
• Pressure Support SIMV (SIMV+PS) Yes
• Synchronized Intermittent Mandatory Ventilation (SIMV) Yes
• Removable battery life 3 hours under normal conditions hours
• Pressure Support Synchronized Intermittent Mandatory Ventilation (SIMV with PS) Yes
• Controlled ventilation (CV) Yes
• Controlled ventilation Yes
• Connecting an external 12 VDC battery
• Loop Disconnect — Off 10 — 60 s.
• Low tidal volume 50 – 2000 ml
• Pressure Control (PC) Yes
• Detachable auxiliary battery Provides up to 3 hours of additional runtime
• Pressure Control Synchronized Intermittent Mandatory Ventilation (PC-SIMV) Yes
• Apnea Off 10 — 60 s. and 4 — 60 breaths per minute.
• Hospital Cart on Wheels Includes a convenient accessory basket and humidifier bracket
• DirectView 1 GB SD memory card installed in the ventilator software
• Spontaneous ventilation (S) Yes
• High tidal volume 50 – 2000 ml
• High minute ventilation 1 — 99 l/min. Off, 1 — 99 l/min.
• Spontaneous ventilation (S/T) Yes
• Low minute ventilation 1 — 99 l/min
• Timed ventilation (T) Yes
• Ventilation at a set rate (T) Yes
• High respiratory rate 4 — 80 breaths per minute.
• Continuous positive airway pressure (CPAP) Yes
• Medium Volume Pressure Support (AVAPS) S, S/T, PC, and T modes only for passive circuit types
• Low respiratory rate 4 — 80 breaths per minute.
• Auto-Trak Sensitivity Algorithm Auto-Trak Sensitivity Algorithm with automatic inspiratory, cycle, and leakage compensation (available in all modes, passive circuit only)
• Tidal volume 0 – 2000 ml
• Minute ventilation 0 – 99 l/min
• Configurable inspiratory flow 1 — 9 L/min (available in all modes and circuit types)
• Estimated leakage rate 0 – 200 l/min
• Respiratory rate 0 — 80 breaths per minute. 0 — 80 breaths per minute
• Peak inspiratory flow 0 – 200 L/min
• Peak inspiratory pressure 0 – 99 cm H₂O
• Mean airway pressure 0 – 99 cm H₂O
• % of breaths activated by the patient 0 — 100%
• The ratio of inhalation: exhalation 9.9:1 — 1:9.9
• Active exhalation valve with proximal airway pressure (PAP) Yes
• Active exhalation valve with flow sensor Yes
• Passive expiratory port Yes
• FiO2 21 — 100%
• Purging 02 2 min. at 100%
• Inlet pressure range 02 276 — 600 kPa (40 — 87 psi)
• Manufacturer’s warranty, months 12
